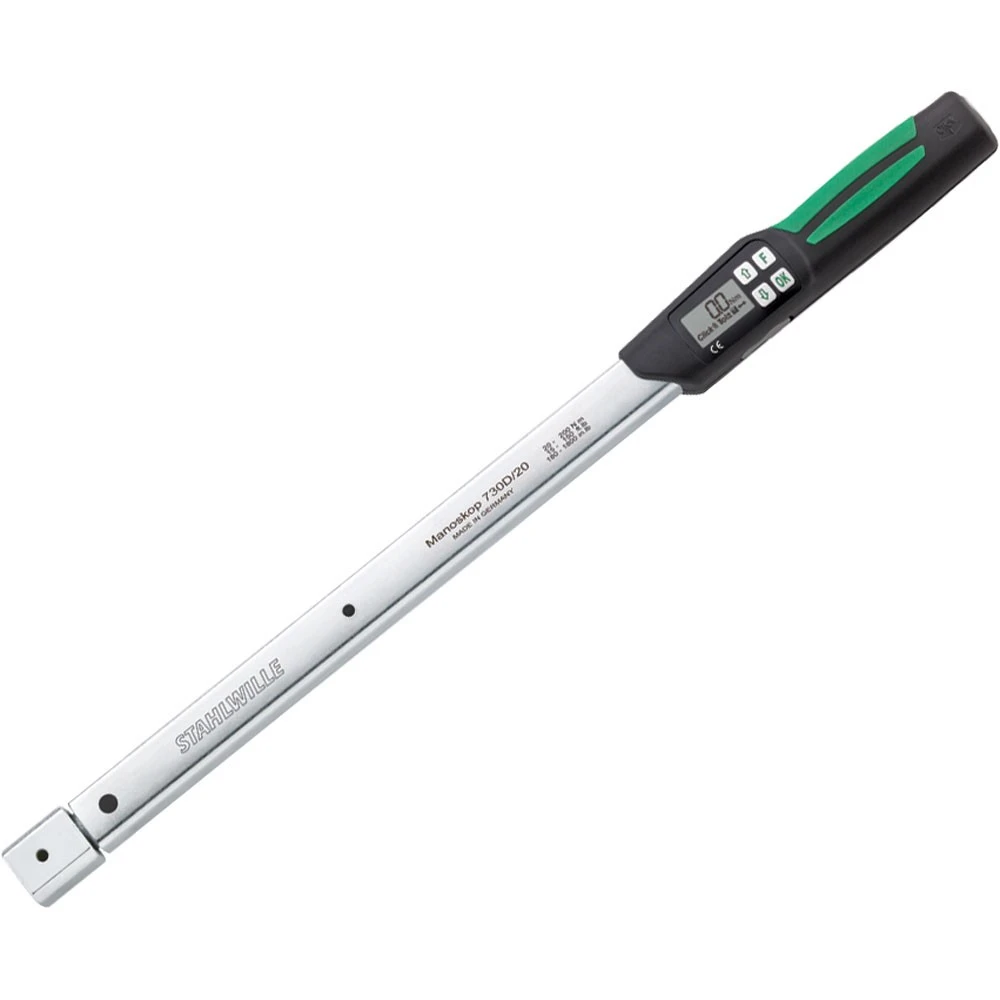

Stahlwille 730D/20 Servcie/Series MANOSKOP® Electromechanical Click Type Torque Wrench With 14×18 Mount

Description

• Tactile & acoustic trigger signal.
• Mount for interchangeable insert tools.
• QuickRelease safety lock.
• Fast setting using convenient keypad.
• Automatic compensation to achieve correct tightening torque even if a changed extension is entered.
• Overload protection by means of acoustic & visual signals.
• Automatic keypad lock prevents inadvertent changes.
• Angle-controlled measurements without a reference arm using Angle Module No.7395-1.
• Display also works for anticlickwise torque.
• Units of measurement: Nm, ft.lb & in.lb.
• Different tolerance limits can be set for each joint.
• Visual red & green signals in the display confirm the status of the joint.
• Additional security for presets (function mode, trigger or preset value, unit of measurement tolerance, save, deviating extension) using PIN code.
• Up to 7,500 measurements can be stored.
• USB interface.
• Automatic notification of the next calibration date.
• Calibration using perfectControl calibrating unit No.7794 or calibration system No.7706.
• Two-component handle with ergonomically designed green softer layers (resistant to oils, grease, fuels, brake fluids & skydrol).
• With certificate.
• Supplied in sturdy plastic case (40-100 in steel case).
• Patent.
• Supplied with two 1.5v AA batteries. AA/LR6 1.2V rechargeable cells may also be used.
• Display deviation value ± 2% ± 1 digit.
• Range: 20-200Nm / 15-150ft.lb.
• Length: 548mm.
• Torque wrench weight: 1361g.
• Torque wrench weight with box: 1896g.
